Products Description

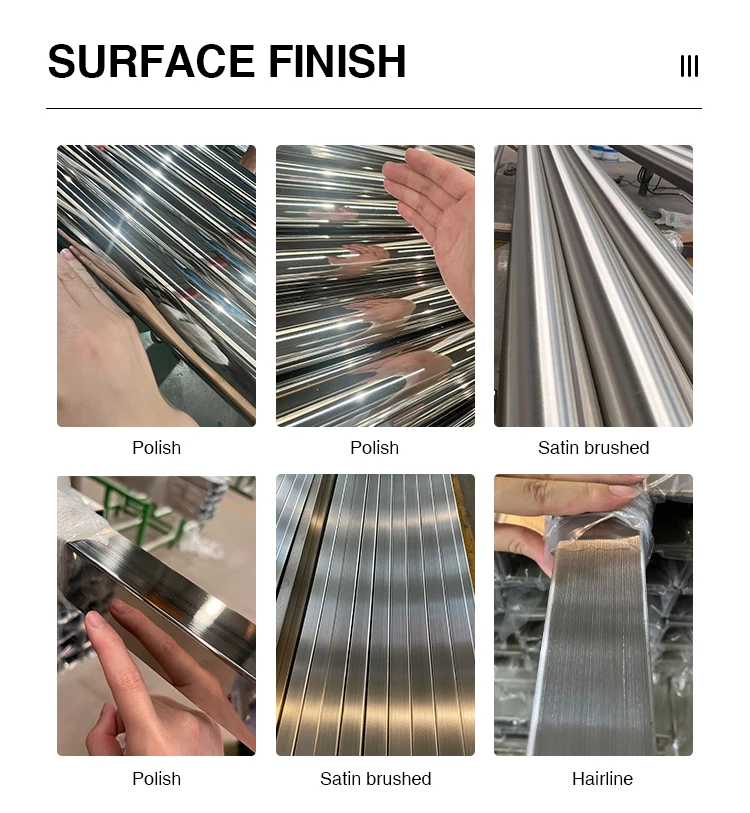

1. Our stainless steel tubes pipes are treated by bright annealing, inside weld bead removing, precise polishing. The roughness of

tubes could be under 0.3μm.
2. We have the non destructive testing ( NDT ), eg. online eddy current inspection and hydraulic or airtightness testing.
3. Thick welding, good appearance.The mechanical properties of tube could be tested.
4. The raw material is from Taigang, Baogang, Zhangpu and so on.
5. And Our tubes are certificated by AD 2000-W0, PED 2014/68/EU, ISO 9001 : 2015.
6. Full material traceability is guaranteed during the manufacturing process.
7. Polished tube is supplied in individual plastic sleeves with capped ends ensuring optimum cleanliness.
8. Internal Bore: Tubes have a smooth, clean and crevice free bore.
9. Market leading quality products.

Stainless Steel Pipe Specifictions
Material Grade	200 Series: 201,202 300 Series: 301,304,304L,316,316L,316Ti,317L,321,309s,310s 400 Series: 409L,410,410s,420j1,420j2,430,444,441,436 Duplex Steel: 904L,2205,2507,2101,2520,2304
Product Standards	Mechanical / Ornamental Pipe: ASTM A554, EN 10296-2
	Food Grade / Sanitary Pipe: ASTM A270, JIS G3447, KS D 3585, EN 10357(DIN 11850), AS 1528.1, ISO 2037(NF A49-249)
	Heat Exchanger Pipe: ASTM A249 / A269 ASME SA249, GB / T 24593-2009, HG 20537.2
	Large Diameter Industrial Tube: ASTM A312 / A778 EN 10217-7, GB / T 12771-2008, HG 20537.3
	Drinking water Pipe: EN-10312 / GB / T 19228
Production Size (can be customized)	Stainless Steel Round Tube Pipe
	Wall thickness	0.5mm-20mm
	Outer diameter	10mm-2000mm
	Stainless Steel Square Tube Pipe
	Wall thickness	0.5mm-20mm
	Outer diameter	4mm4mm-800mm800mm
	Stainless Steel Rectangular Tube Pipe
	Wall thickness	0.5mm-20mm
	Outer diameter	1mm-150mm
Length	4000mm,5800mm,6000mm,12000mm, or as required.

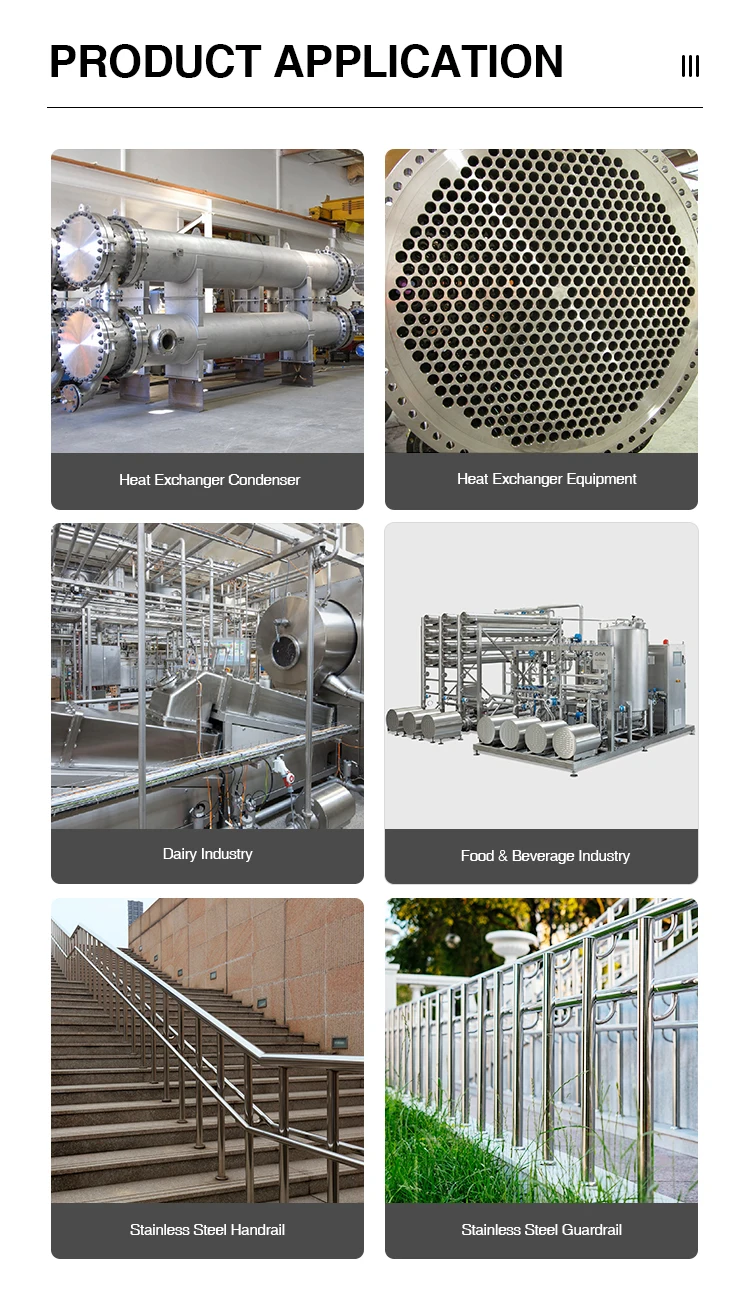

Application	Sanitary Pipe: for food processing industry, beverage industry, sugar mill and so on;
	Heat Exchanger Pipe: condenser, boiler, super heater, evaporator and so on;
	Industiral Tube: for petroleum delivery, gas delivery, petrochemical industry, wastewater treatment, drainage system, and so on;
	Mechanical Pipe: handrail, railings, balustrade, hence and so on.
